Description
|
Function
|
Power transmission
|
|
Use
|
Tractors and various farm implements
|
|
Yoke Type
|
push pin/quick release/ball attachment/collar/double push pin/bolt pins/split pins
|
|
Processing Of Yoke
|
Forging
|
|
Plastic Cover
|
YW;BW;YS;BS
|
|

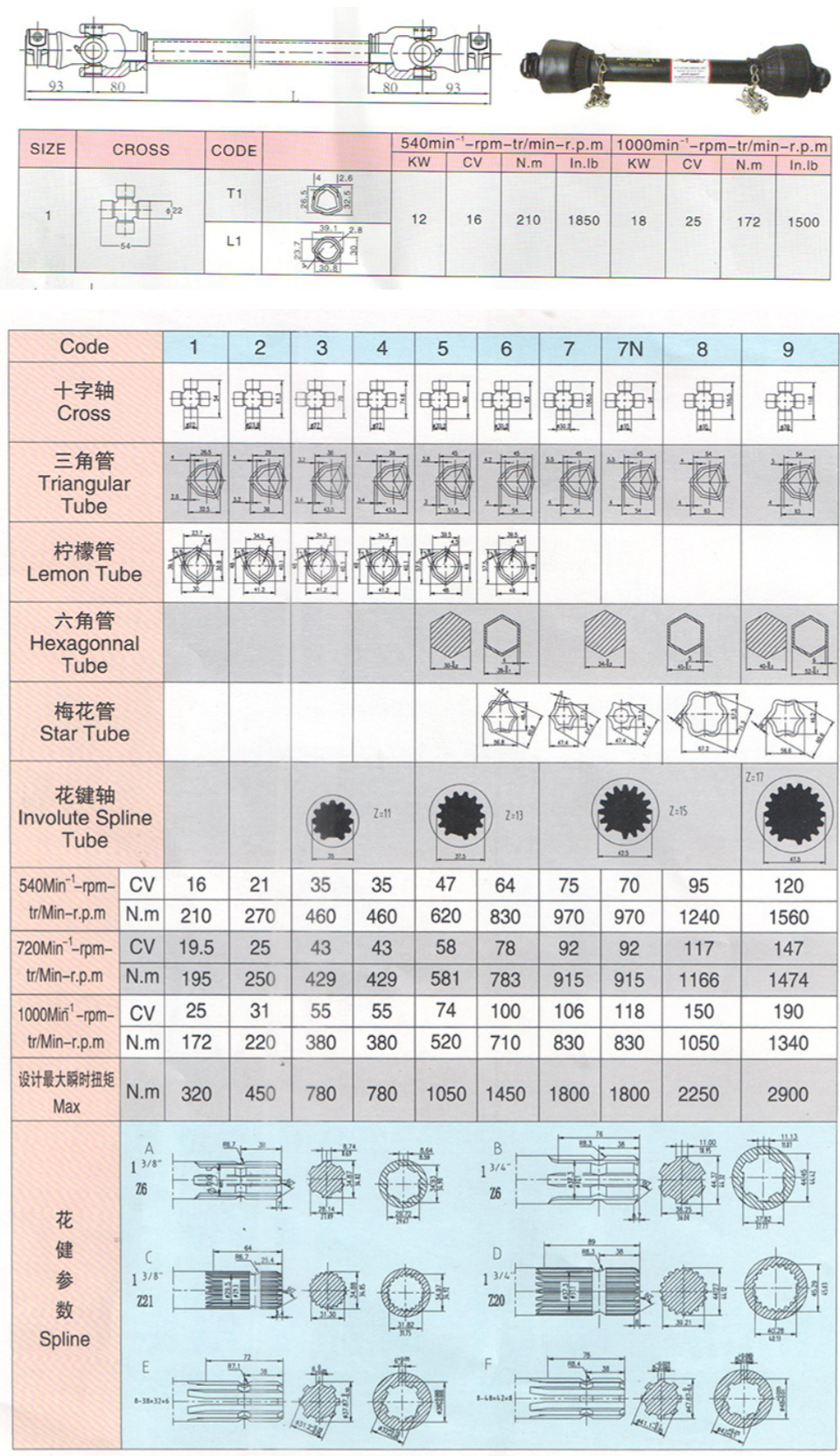

Series
|
1S;2S;3S;4S;5S;6S;7S;8S;9S;10S;38S;48S;36
|
|
Tube Type
|
Trianglar/star/lemon
|
|
Processing Of Tube
|
Cold drawn
|
|
Spline Type
|
1 3/8″ Z6; 1 3/8 Z21 ;1 3/4 Z20;1 1/8 Z6; 1 3/4 Z6; 8*42*48*8; 8*32*38*6
|
|
Materlal and Surface Treatment
|
|
|
Cross shaft
|
Heat treatment of 20Cr2Ni4A forging
|
|
Bearing cup
|
20CrMOTi forging heat treatment
|
|
Flange fork
|
ZG35CrMo, steel casting
|
|
Spline shaft
|
42GrMo forging heat treatment
|
|
Spline bushing
|
35CrM0 forging heat treatment
|
|
Sleeve body
|
42CrMo forging
|
|
Surface treatment:
|
spraying
|
|
Flat key, positioning ring
|
42GrMo forging
|
●The above are standard models and materials. If you have special supporting requirements, you can customize production according to customer needs.
